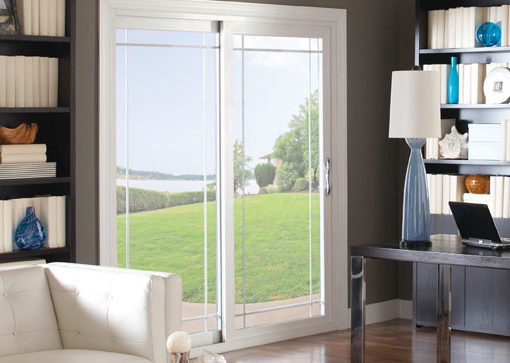

Masterfully Crafted for Exceptional Beauty
Precision-built with premium vinyl construction, ultra-efficient insulating components, and high-performance glass, Promenade delivers all the must-haves in the ideal patio door. The heavy-duty mainframe and sash, multi-chambered extrusions, and steel-reinforced interlocking meeting rails ensure superior structural integrity and durability, as well as increased insulation. Our innovative ClimaTech PriME glass package meets ENERGY STAR Most Efficient criteria and may help homeowners qualify for tax credits.
This product is available in our Eastern distribution area.
Features and Benefits
- Three distinctive styles to choose from: Contemporary, Classic, and French.
- Mainframe and sash feature a double-wall design and multi-chambered construction for outstanding strength and thermal protection.
- Dual internal/external weatherstripping on the sash enhances energy efficiency and performance.
- Precision-engineered tandem roller system ensures easy and quiet door operation.
- Mainframe joints incorporate closed-cell foam gaskets for superior sealing.
- Deep anodize finished aluminum roller track helps eliminate the possibility of unsightly dark residue and wearing typical of aluminum tracks while ensuring easy-glide operation.
- Integrated mini blinds on select sliding patio doors featuring patented technology for superior performance.
- Available in 2-, 3- and 4-panel configurations.
Insulated Glass Packages
Reducing energy loss is often the number one reason for purchasing replacement windows. Windows are roughly 80% glass, so its important to choose the ideal glass system for your home and climate. Upgrading to a high-performance Low-E (low-emissivity) insulated glass package may help further increase year-round energy savings.
Promenade offers six families of high-performance insulated glass packages, including our innovative ClimaTech PriME insulated glass package, which meets ENERGY STAR Most Efficient in all climate zones:
ClimaTech PriME TG2 Plus S6 - features a triple-pane unit with three surfaces of Low-E glass (surfaces 2, 4, and 6), two air spaces of argon gas, and Super Spacer foam spacer.
ClimaTech Plus - features a double-pane unit with one pane of Low-E glass, argon gas, and Super Spacer foam spacer.
ClimaTech Elite Plus - features a double-pane unit with one pane of SHGC Low-E glass, argon gas, and Super Spacer foam spacer.
ClimaTech SF Plus - features a double-pane unit with two surfaces of Low-E glass (surfaces 2 and 4), argon gas, and Super Spacer foam spacer.
ClimaTech SF Elite Plus - features a double-pane unit with one surface of SHGC Low-E glass (surface 2), one surface of Low-E glass (surface 4), argon gas, and Super Spacer foam spacer.
ClimaTech TG2 Plus - features a triple-pane unit with two surfaces of Low-E glass, two air spaces of argon gas, and Super Spacer foam spacer.
Consult your window professional for the energy-efficient glass packages available for your home and climate zone.
Learn MorePatio Door Styles
Classic Style Patio Door Diagram
Contemporary Style Patio Door Diagram
French Style Patio Door Diagram

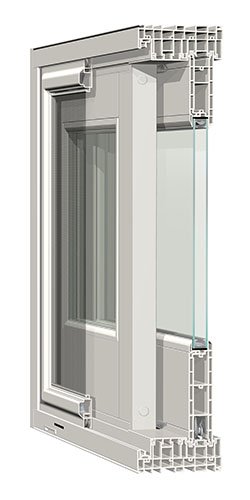

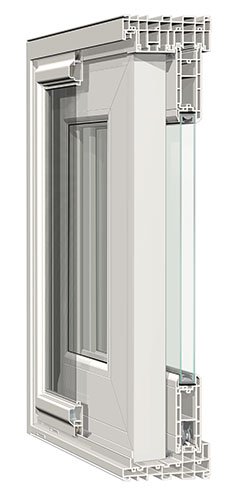

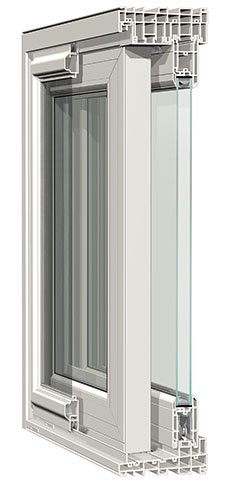

Cross Section
- Premium vinyl mainframe and sash extrusions are colored throughout, won't chip, peel, crack, or warp, and never need to be painted.
- Mainframe and sash feature a double-wall design and multi-chambered construction for outstanding strength and thermal protection.
- Dual internal/external weatherstripping on the sash enhances energy efficiency and performance.
- Ample 5 rails with mitered and fusion-welded joints provide traditional beauty as well as added strength and durability.
- 1 thick (nominal) insulated glass unit with the Intercept Warm-Edge Spacer System promotes energy conservation year-round.
- Steel reinforcements at the interlocks and lock rails increase strength, rigidity, and structural integrity.
- Contoured glazing bead adds visual interest and beauty.
- Precision-engineered tandem roller system ensures quiet and easy operation of the door panel.
- Fusion-welded mainframe provides increased durability and strength.
Colors and Finishes
Exterior Colors
Black
Architectural Bronze
American Terra
Hudson Kaki
Desert Clay
Sand Dune
English Red
Forest Green
Silver
Castle Gray
Beige*
Classic Clay*
White*
Interior Colors
White*
Beige*
Classic Clay*
White Woodgrain
Rich Maple Woodgrain
Light Oak Woodgrain
Dark Oak Woodgrain
Foxwood Woodgrain
Cherry Woodgrain
Elegant Hand Styles

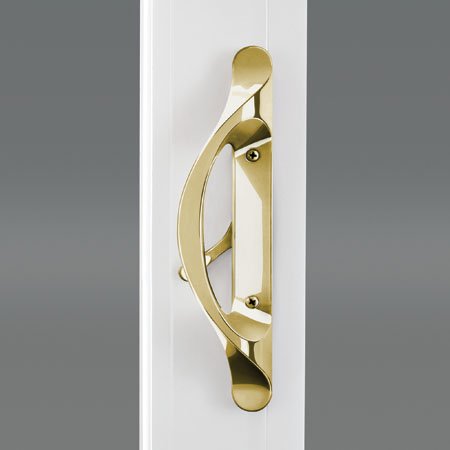

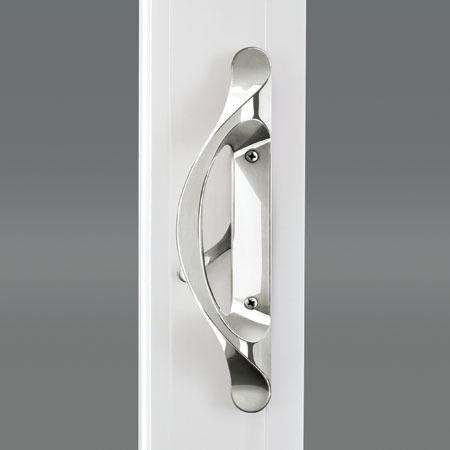

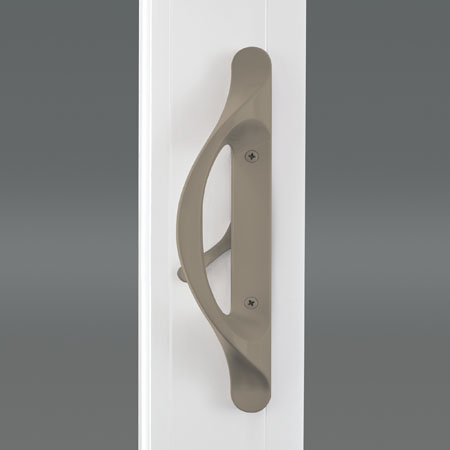

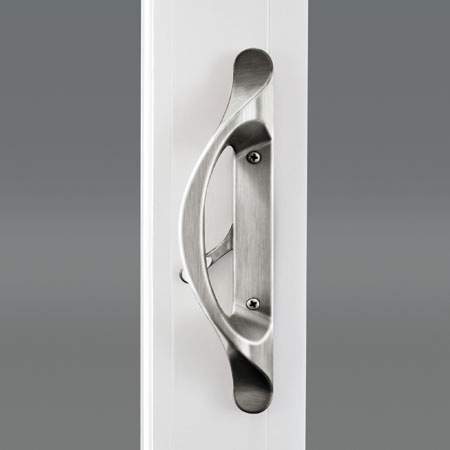

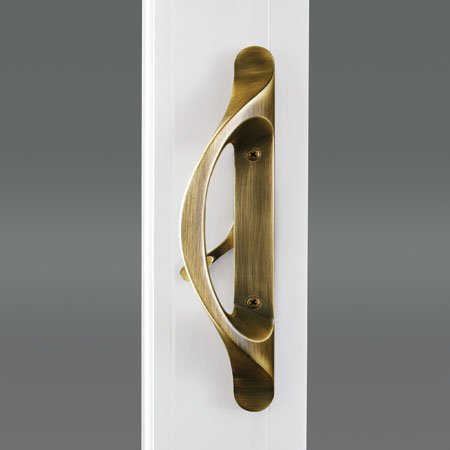

Our Contemporary-Style and Classic-Style Sliding Patio Doors feature a popular handle design with thumb latch for universal appeal.

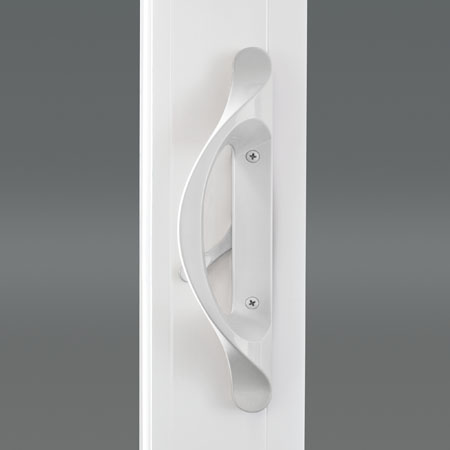

White

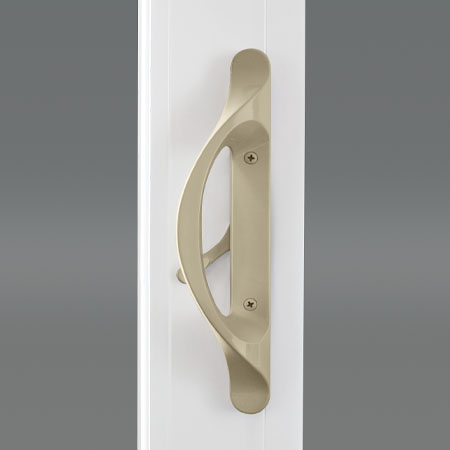

Beige
Classic Clay
Bright Chrome
Brushed Chrome
Bright Brass
Antique Brass

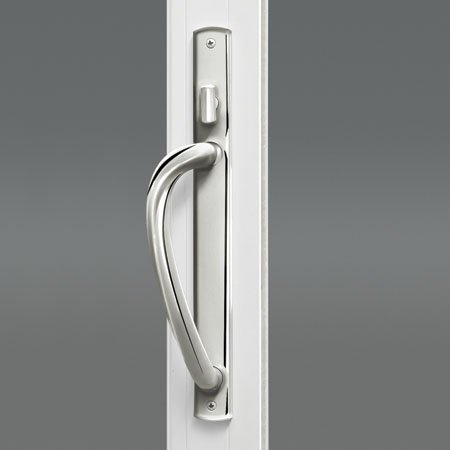

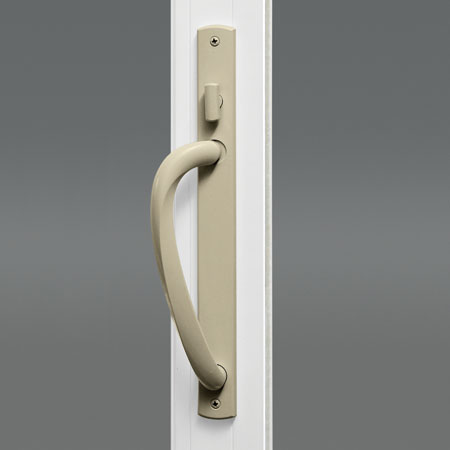

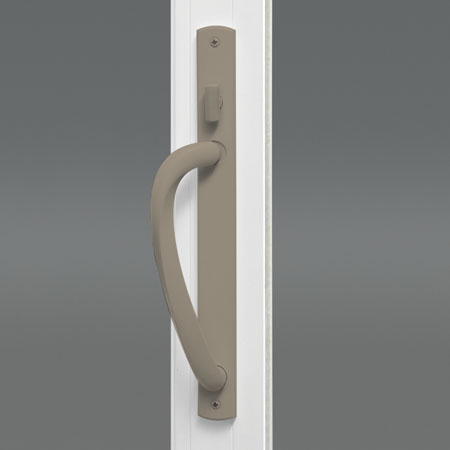

The gracefully contoured handle on our French-Style Sliding Patio Door includes a top lock for added resistance.
White
Beige
Classic Clay
Bright Chrome

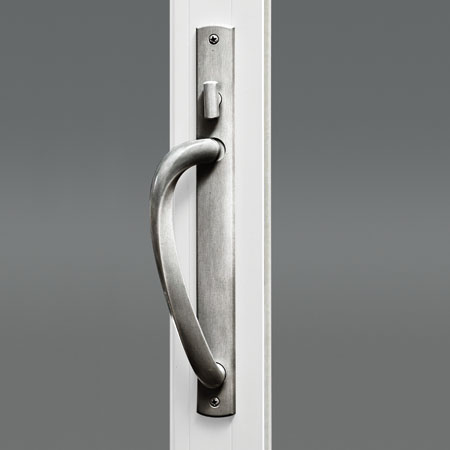

Brushed Chrome

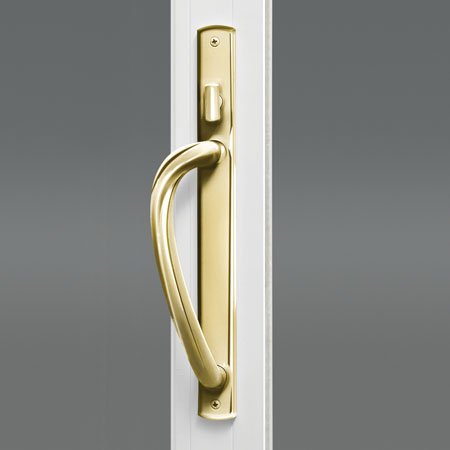

Bright Brass
Antique Brass
Contemporary, Classic and French-style exterior patio door handles are available in White, Beige, Classic Clay and Black.
Interior Grids
Decorative grids will impart a touch of refinement to your patio door. All grids are enclosed within the insulated glass unit for easy cleaning. Choose from our selection of beautiful grid profiles and patterns to design your ideal finished look.
Grid Patterns
Colonial

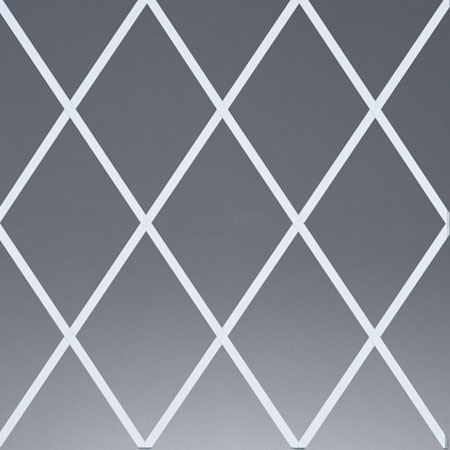

Diamond
Prairie
Grid Profiles

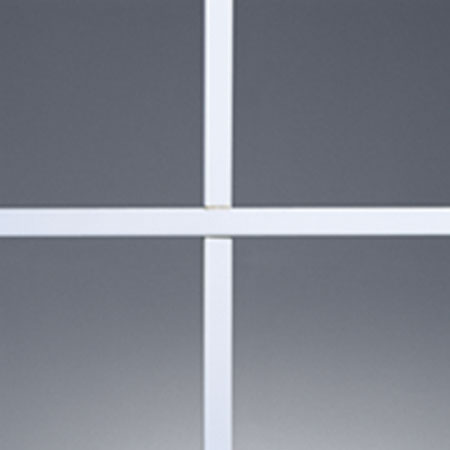

Flat White

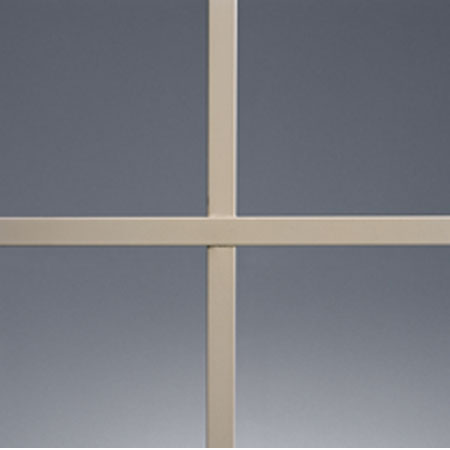

Flat Beige
Flat Classic Clay

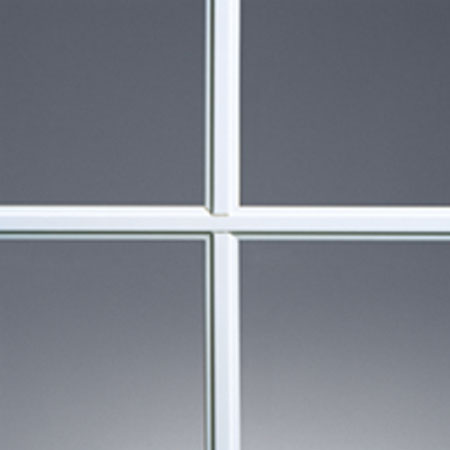

Contoured White

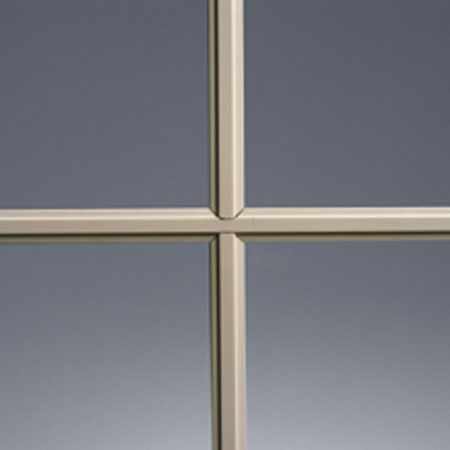

Contoured Beige

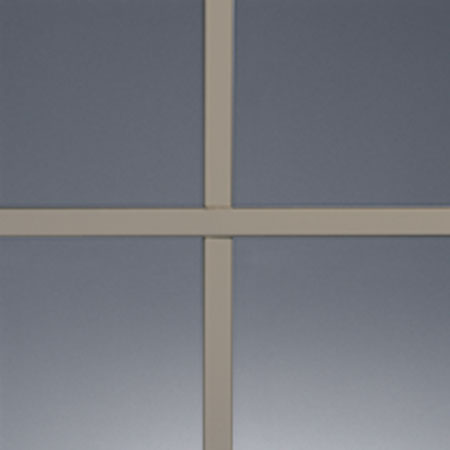

Contoured Classic Clay

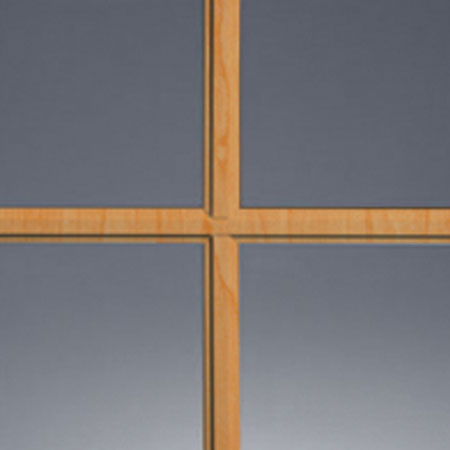

Contoured Rich Maple

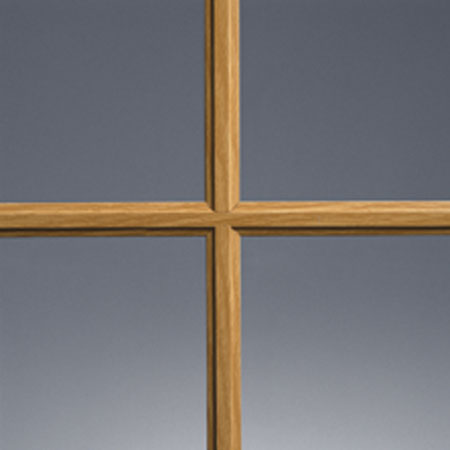

Contoured Light Oak
Contoured Dark Oak

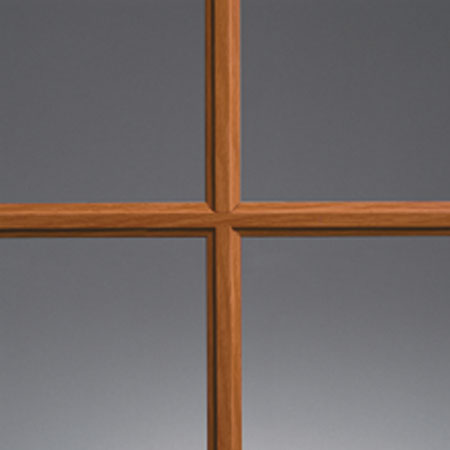

Contoured Foxwood
Contoured Cherry
Simulated Divided Lites

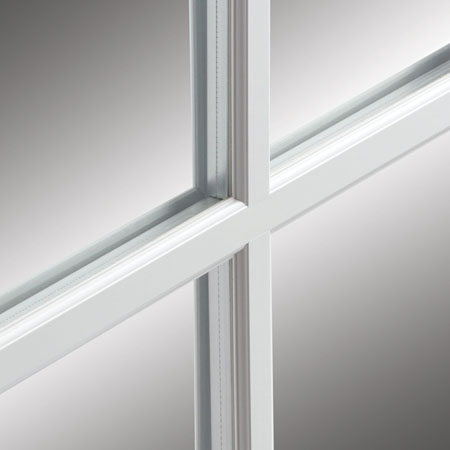

7/8" Simulated Divided Lite with shadow bar

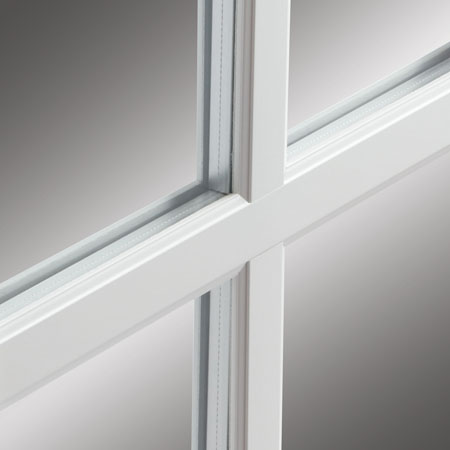

1 1/4" Simulated Divided Lite with shadow bar

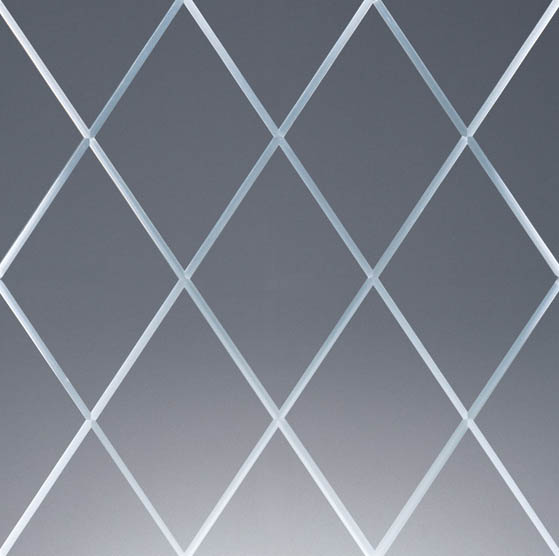

V-Grooved Cut Glass
Colonial
Diamond
Prairie
