Promenade Patio Door West Coast Collection

Features and Benefits

• Three distinctive styles to choose from: Contemporary, Classic and French.
• Mainframe and sash feature a double-wall design and multi-chambered construction for outstanding strength and thermal protection.
• Dual internal/external weatherstripping on the sash enhances energy efficiency and performance.
• Precision-engineered tandem roller system ensures easy and quiet door operation.
• Deep anodized finished aluminum roller track helps eliminate the possibility of unsightly dark residue and wear typical of aluminum tracks while ensuring easy-glide operation.
• Integrated mini blinds on select sliding patio doors featuring patented technology for superior performance.
• Available in 2-, 3- and 4-panel configurations.

Insulated Glass Packages

Reducing energy loss is often the number one reason for purchasing replacement windows. Windows are roughly 80% glass, so its important to choose the ideal glass system for your home and climate. Upgrading to a high-performance Low-E (low-emissivity) insulated glass package may help further increase year-round energy savings.

Promenade offers six families of high-performance insulated glass packages, including our innovative ClimaTech PriME insulated glass package, which meets ENERGY STAR Most Efficient in all climate zones:

ClimaTech PriME ThermD S6 - features a triple-pane unit with three surfaces of Low-E glass (surfaces 2, 4, and 6), two air spaces of argon gas, and Stainless Steel Intercept Warm-Edge Spacer System.

ClimaTech - features a double-pane unit with one pane of Low-E glass, argon gas, and metal alloy Intercept spacer.

CClimaTech Elite Plus - features a double-pane unit with one pane of SHGC Low-E glass, argon gas, and foam spacer.

ClimaTech SF ThermD - features a double-pane unit with two surfaces of Low-E glass (surfaces 2 and 4), argon gas and Stainless Steel Intercept Warm-Edge Spacer System.

ClimaTech SF Elite ThermD - features a double-pane unit with one surface of SHGC Low-E glass (surface 2), one surface of Low-E glass (surface 4), argon gas and Stainless Steel Intercept Warm-Edge Spacer System.

ClimaTech TG2 - features a triple-pane unit with two surfaces of Low-E glass, two air spaces of argon gas and Intercept Warm-Edge Spacer System.

Consult your window professional for the energy-efficient glass packages available for your home and climate zone.

Patio Door Styles

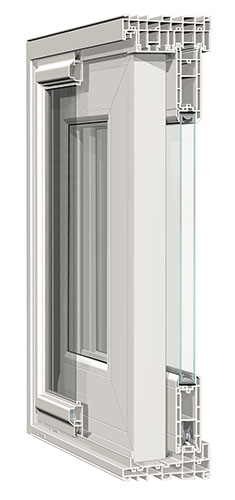

Classic Style Patio Door

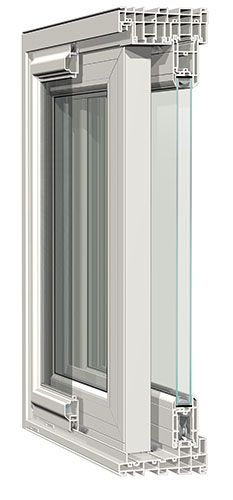

Contemporary Style Patio Door

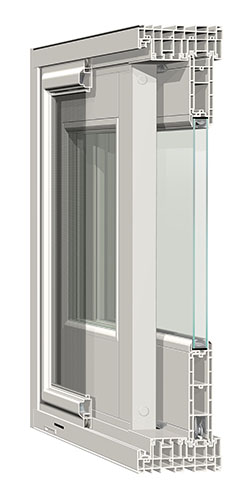

French Style Patio Door

Cross Section

1. Premium vinyl mainframe and sash extrusions are colored throughout, won't chip, peel, crack, or warp and never need to be painted.
2. Mainframe and sash feature a double-wall design and multi-chambered construction for outstanding strength and thermal protection.
3. Dual internal/external weatherstripping on the sash enhances energy efficiency and performance.
4. Ample 5 rails with mitered and fusion-welded joints provide traditional beauty as well as added strength and durability.
5. 1 thick (nominal) insulated glass unit with the Intercept Warm-Edge Spacer System promotes energy conservation year-round.
6. Steel reinforcements at the interlocks and lock rails increase strength, rigidity and structural integrity.
7. Contoured glazing bead adds visual interest and beauty.
8. Precision-engineered tandem roller system ensures quiet and easy operation of the door panel.
9. Fusion-welded mainframe provides increased durability and strength.

Colors and Finishes

Exterior Colors

*Solid extruded colors

**Available in a white or almond interior only

We recommend you make final color selections using actual product samples. All colors may not be available in all markets.

Elegant Hand Styles

Our Contemporary-Style and Classic-Style Sliding Patio Doors feature a popular handle design with thumb latch for universal appeal.

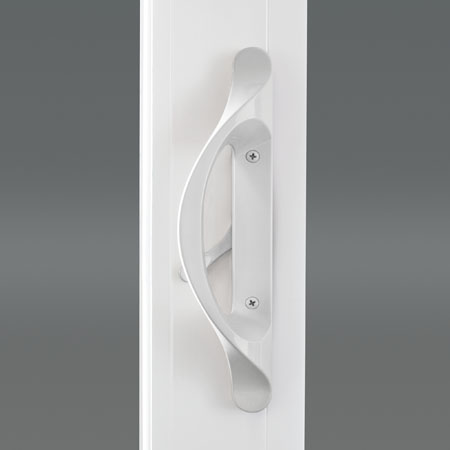

White

Almond

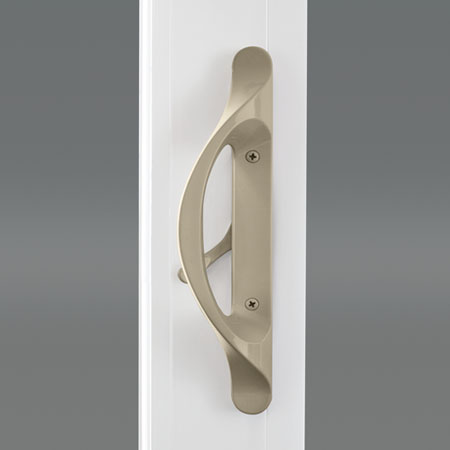

Desert Clay

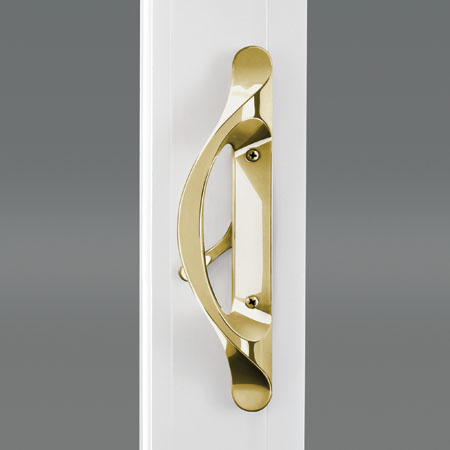

Bright Brass

Bright Chrome

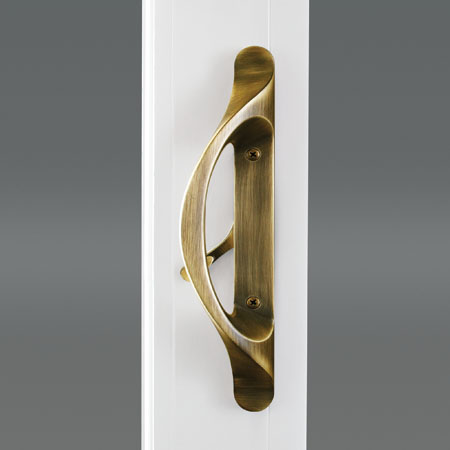

Antique Brass

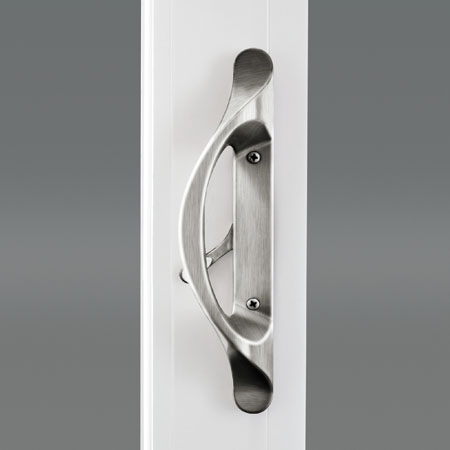

Brushed Chrome

The gracefully contoured handle on our French-Style Sliding Patio Door includes a top lock for added resistance.

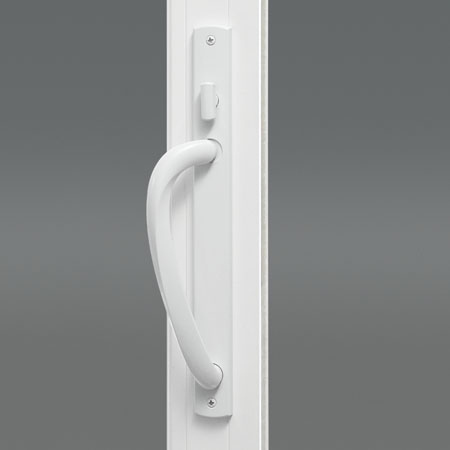

White

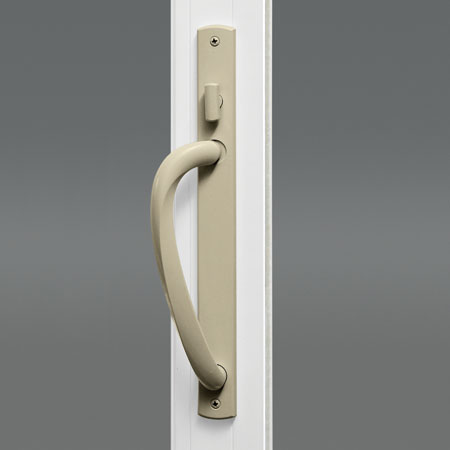

Almond

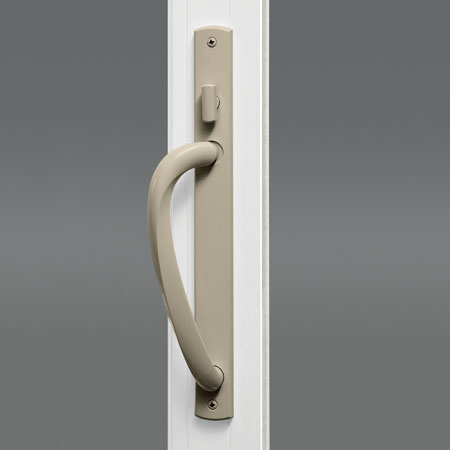

Desert Clay

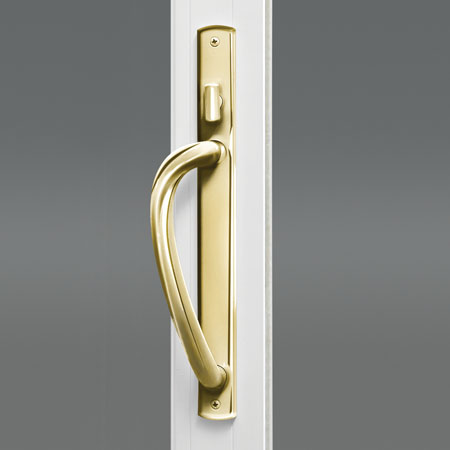

Bright Brass

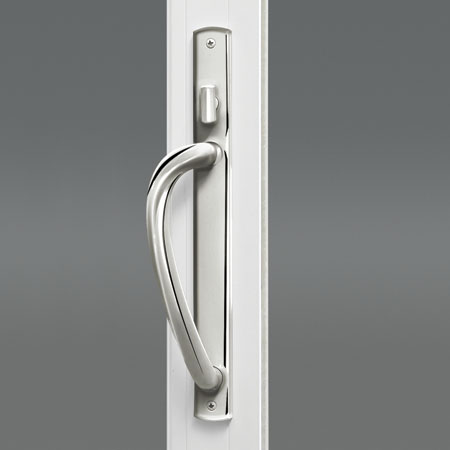

Bright Chrome

Antique Brass

Brushed Chrome

Grid Patterns

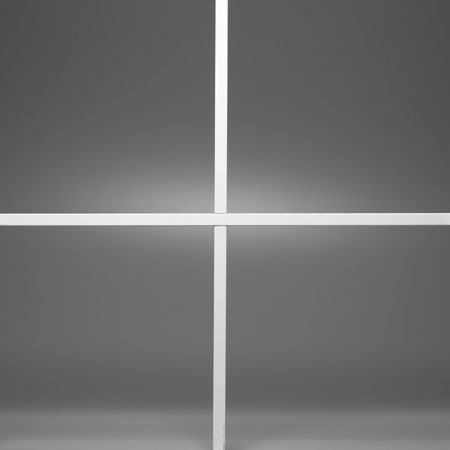

5/8" Standard Colonial

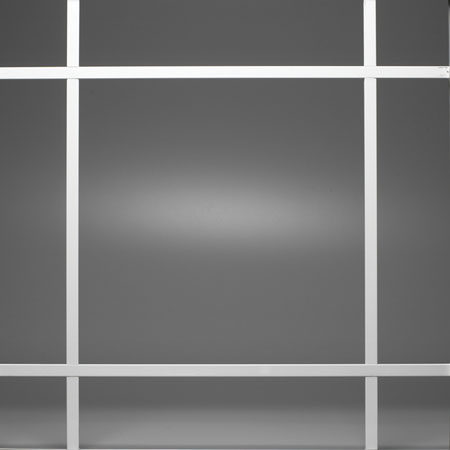

5/8" Standard Prairie

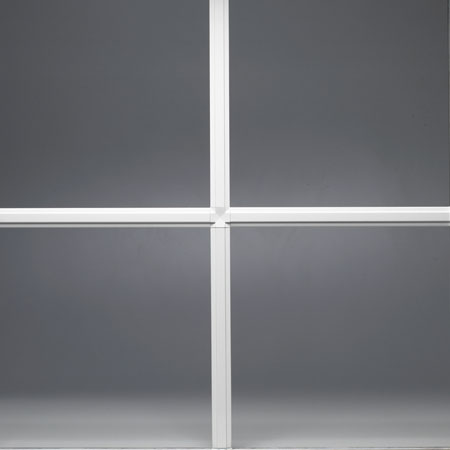

3/4" Contoured Colonial

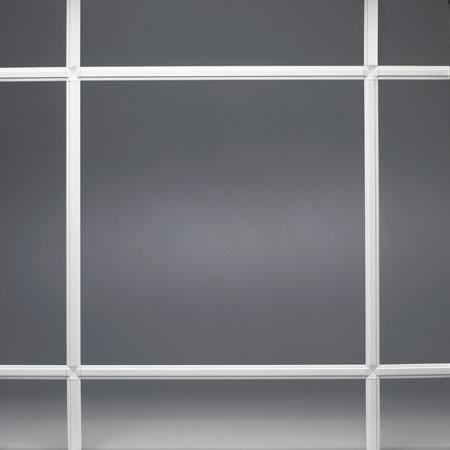

3/4" Contoured Prairie

1" Contoured Colonial

1" Contoured Prairie
